2025 Behnke Fifth Wheel High Clearance Sprayer Trailer – 80K GVWR
Original price was: $52,000.00.$45,000.00Current price is: $45,000.00.
2025 Behnke Fifth Wheel High Clearance Sprayer Trailer engineered for transporting high-clearance agricultural sprayers and heavy farm equipment. Features an 80,000-lb GVWR, 53′ semi-style step deck, triple 25,000-lb oil-bath axles, air brakes with ABS and Ridewell air-ride suspension.
- Style: Semi-Style Step Deck
- Length: 53′ – 40′ lower deck + 13′ upper deck
- Width: 102″
- GVWR: 80,000 lbs
- Axles: (3) 25,000-lb Oil Bath
- Brakes: Air Brakes with ABS
- Suspension: Ridewell Air Ride with Dump Valve
- Tires: 255/70R22.5 Dual
- Hitch: Fifth Wheel
- Decking: 2×8 No. 1 Treated Pine
2025 Behnke Fifth Wheel High Clearance Sprayer Trailer for Sale
The 2025 Behnke Fifth Wheel High Clearance Sprayer Trailer is a specialized heavy-duty agricultural transport trailer designed for hauling high-clearance sprayers and other compatible farm machinery. Its 53-foot semi-style step-deck configuration, fifth-wheel connection and 80,000-lb GVWR make it a purpose-built solution for demanding agricultural equipment transportation.
The trailer features a 40-foot lower deck and 13-foot upper deck with an overall width of 102 inches. A fifth-wheel hitch combined with a 13-foot deck-over section provides approximately 48 inches of clearance.
Behnke High Clearance Sprayer Trailer Specifications
- Manufacturer: Behnke
- Year: 2025
- Trailer Type: High Clearance Sprayer Trailer
- Style: Semi-Style Step Deck
- Overall Length: 53′
- Lower Deck: 40′
- Upper Deck: 13′
- Width: 102″
- GVWR: 80,000 lbs
- Axles: (3) 25,000-lb Oil Bath Axles
- Brakes: Air Brakes with ABS
- Suspension: Ridewell Air Ride Suspension with Dump Valve
- Tires: 255/70R22.5 Dual
- Frame: 16″ x 26# I-Beam
- Decking: 2×8 No. 1 Treated Pine
- Fenders: 1/4″ Steel
- Hitch: Fifth Wheel
- Landing Gear: Dual-Speed Holland Landing Gear
Built for High Clearance Agricultural Equipment
This Behnke sprayer trailer is designed around the transportation requirements of high-clearance agricultural machinery. Its specialized deck and loading configuration provide the space and clearance required for compatible sprayers and other large farm equipment.
The trailer includes 20-inch flip-out outriggers with wheel stops. With the sides folded up, the trailer measures approximately 8.5 feet wide, providing a practical configuration for transport and loading operations.

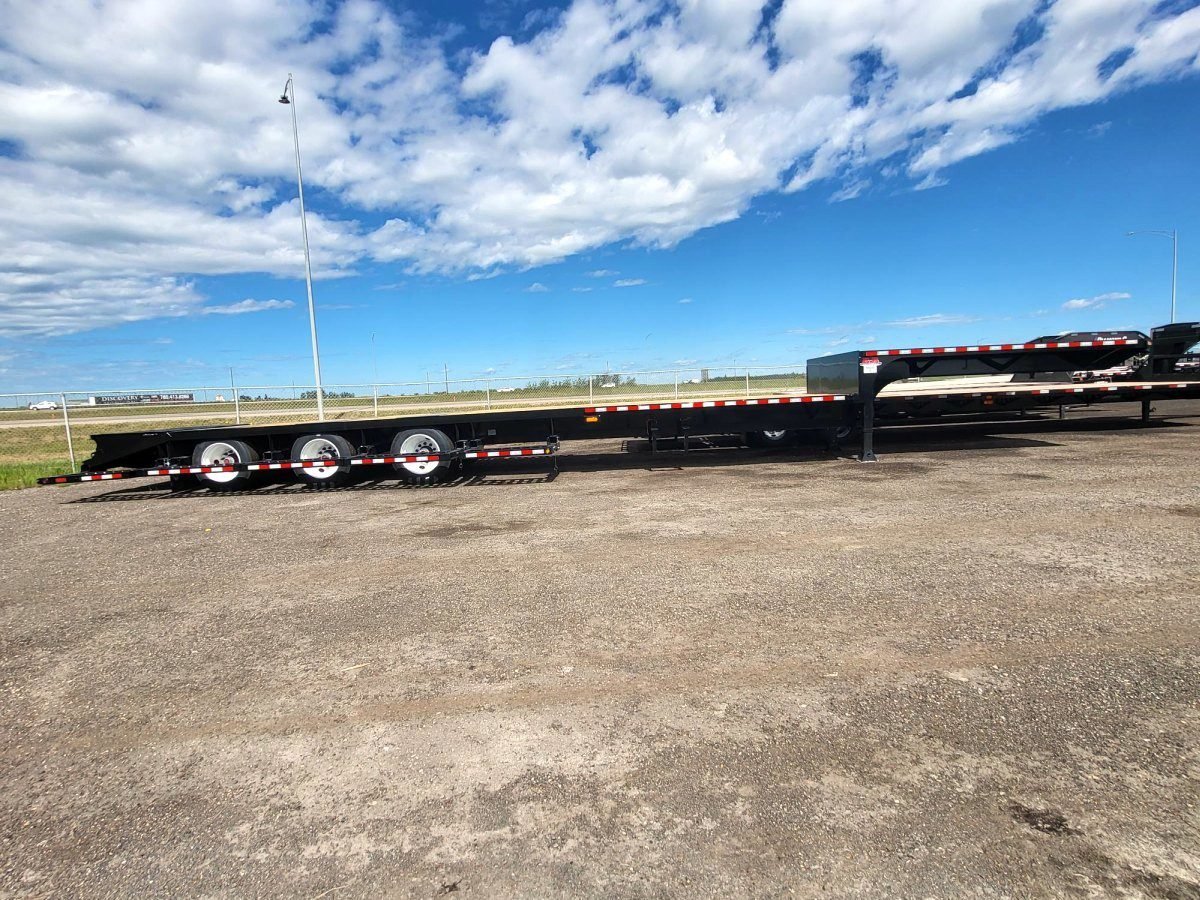

53-Foot Semi-Style Step Deck
The 53-foot configuration combines a 40-foot lower deck with a 13-foot upper deck. This step-deck design provides substantial usable loading space while accommodating equipment with specialized clearance requirements.
The deck uses 2×8 No. 1 treated pine, while the heavy-duty frame is constructed using a 16″ x 26# I-beam design.
Triple 25K Oil Bath Axles
The trailer is equipped with three 25,000-lb oil-bath axles designed for heavy commercial applications. Ridewell air-ride suspension with a dump valve provides the suspension system for the triple-axle configuration.
Air brakes equipped with ABS provide braking support appropriate for this type of heavy-duty semi-style trailer when connected to a properly equipped tow vehicle.

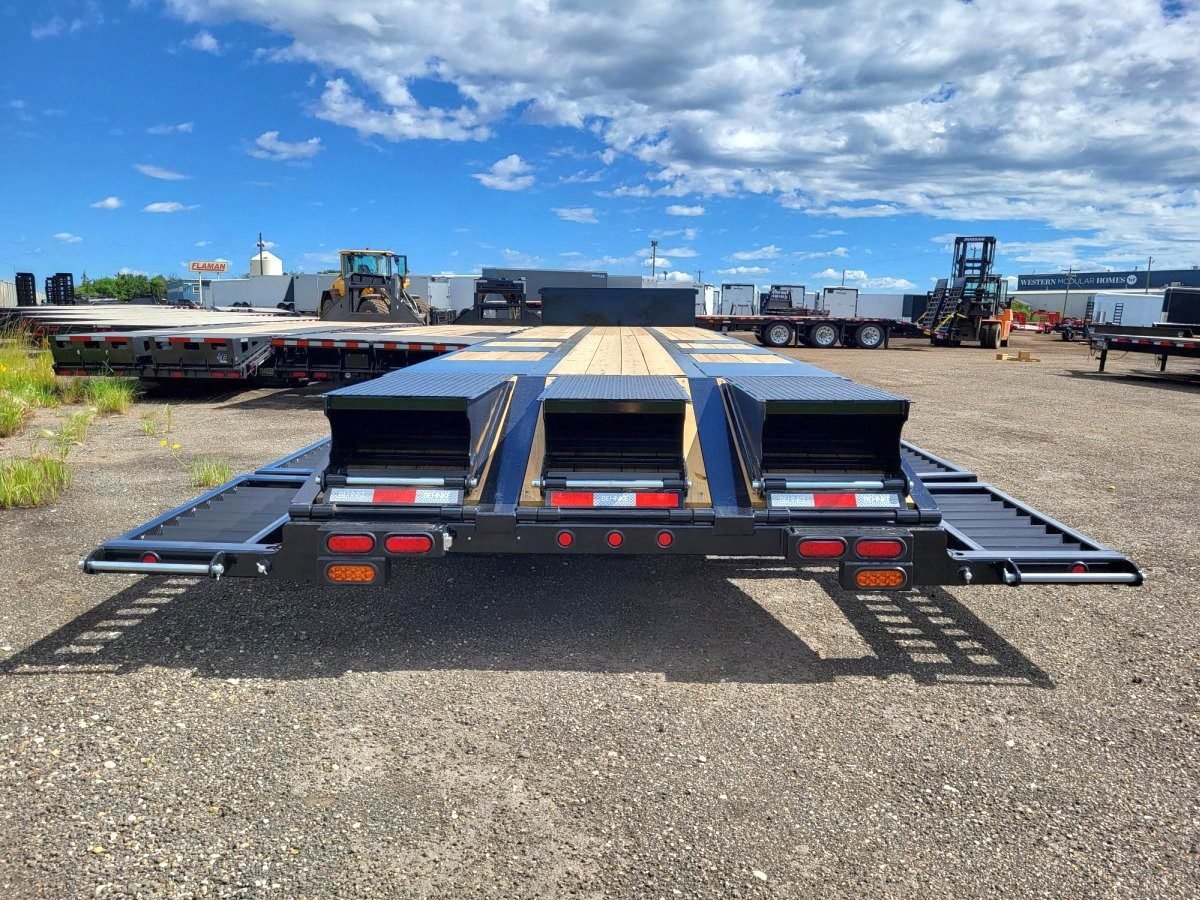

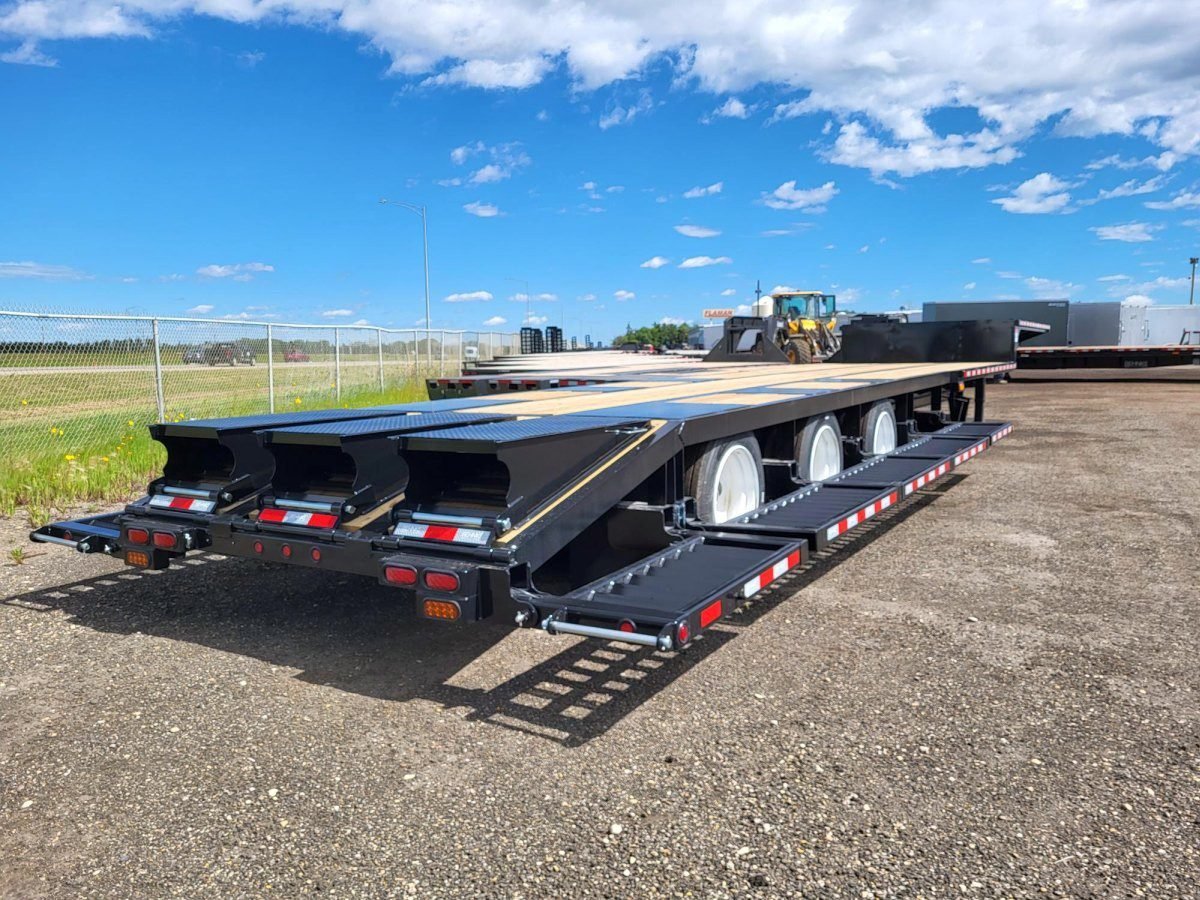

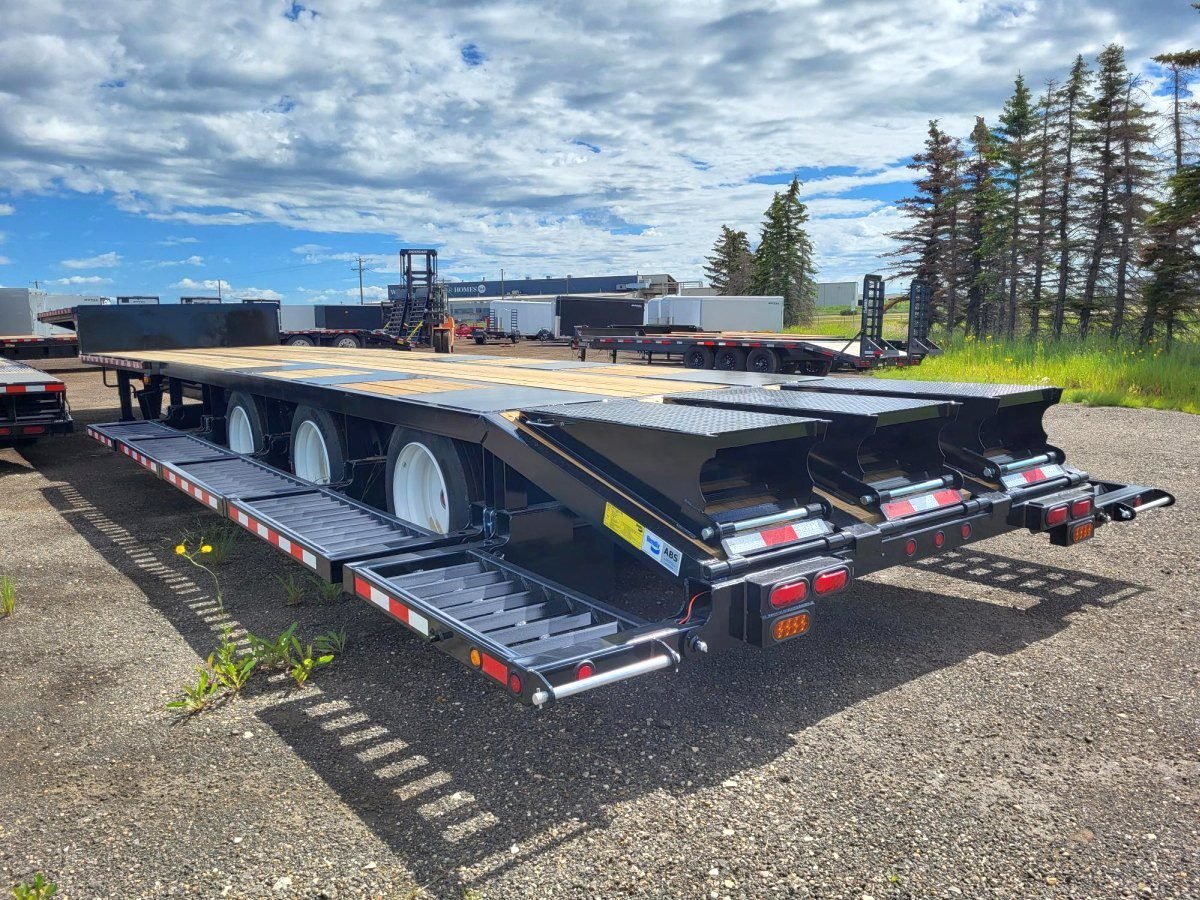

Flip-Over Deck Leveling Ramps
Three flip-over deck-leveling ramps are positioned on the beavertail to assist with loading compatible agricultural machinery. Combined with the flip-out outriggers and wheel stops, the loading system is specifically suited to equipment with wide wheel spacing and high ground clearance.

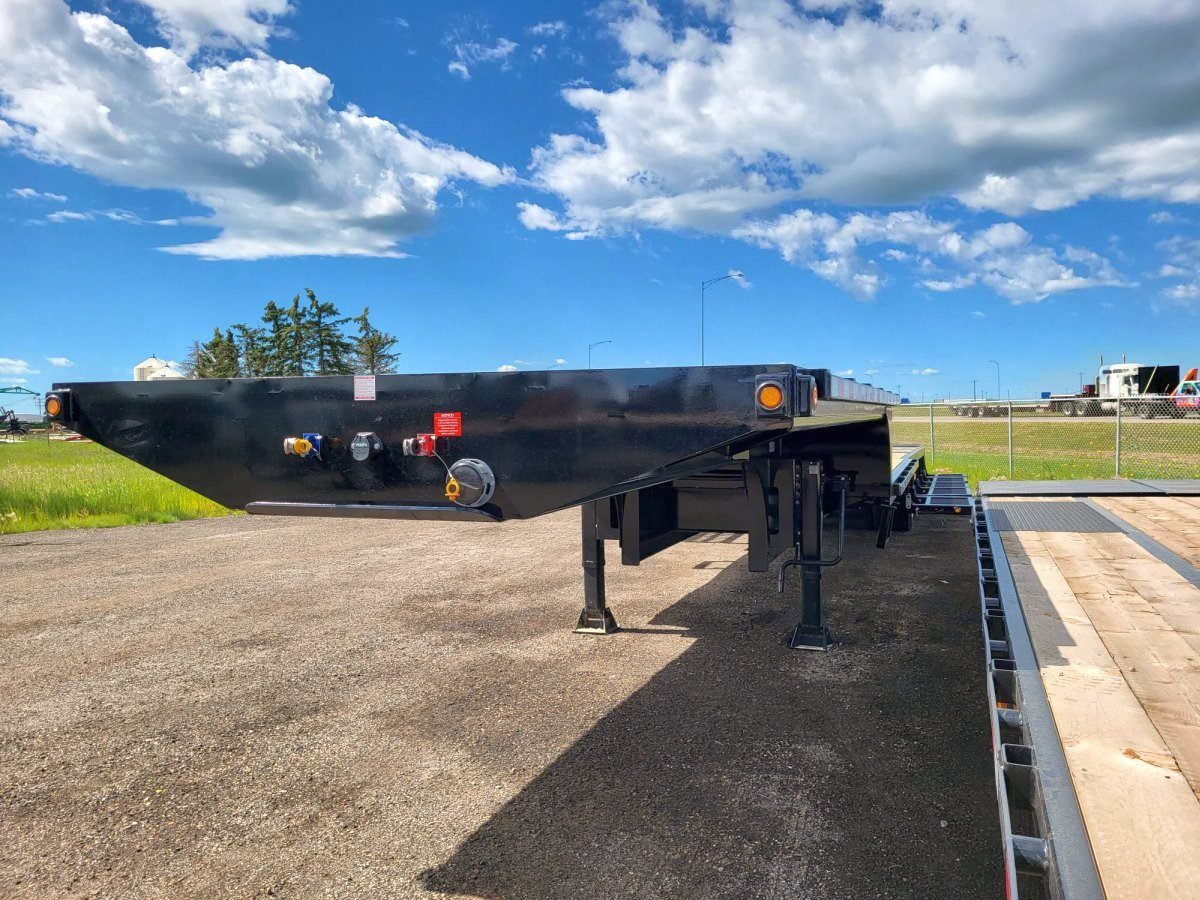

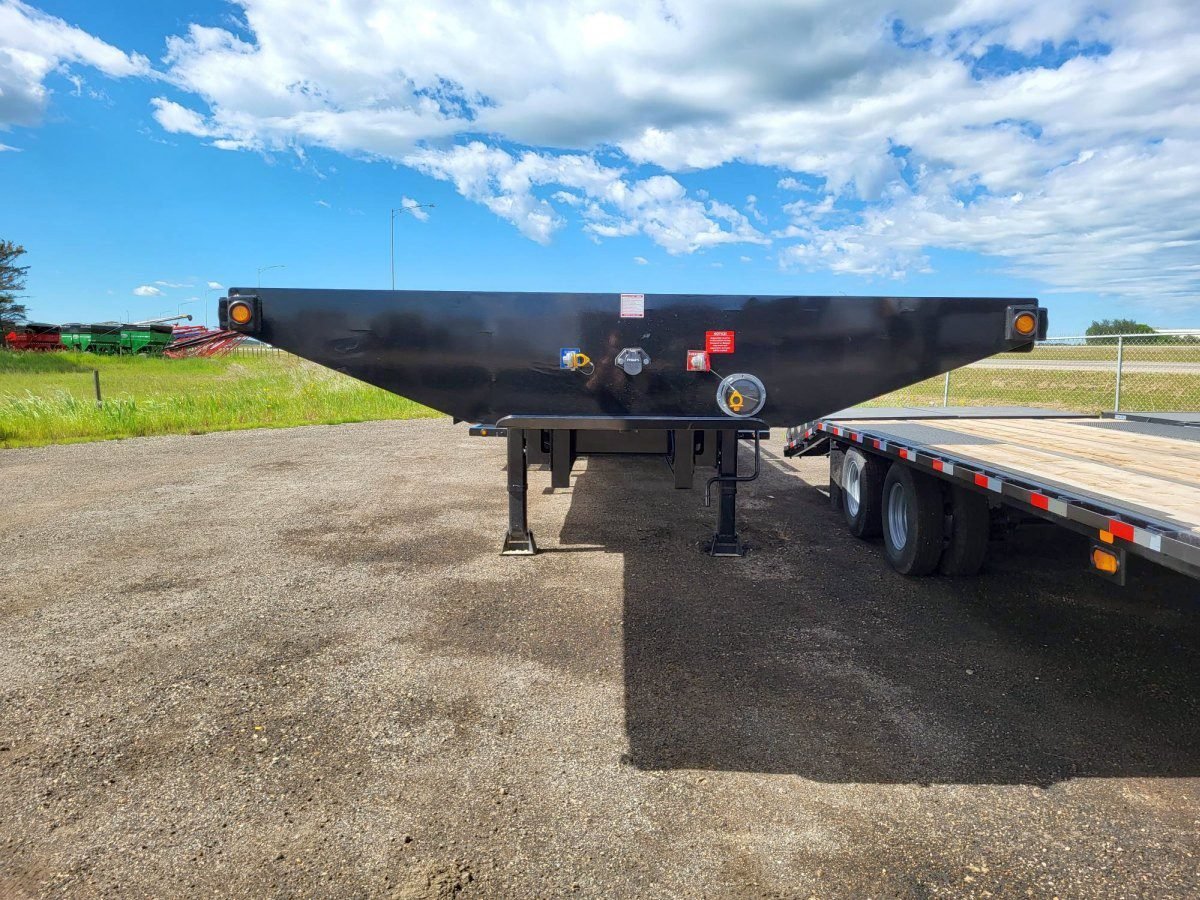

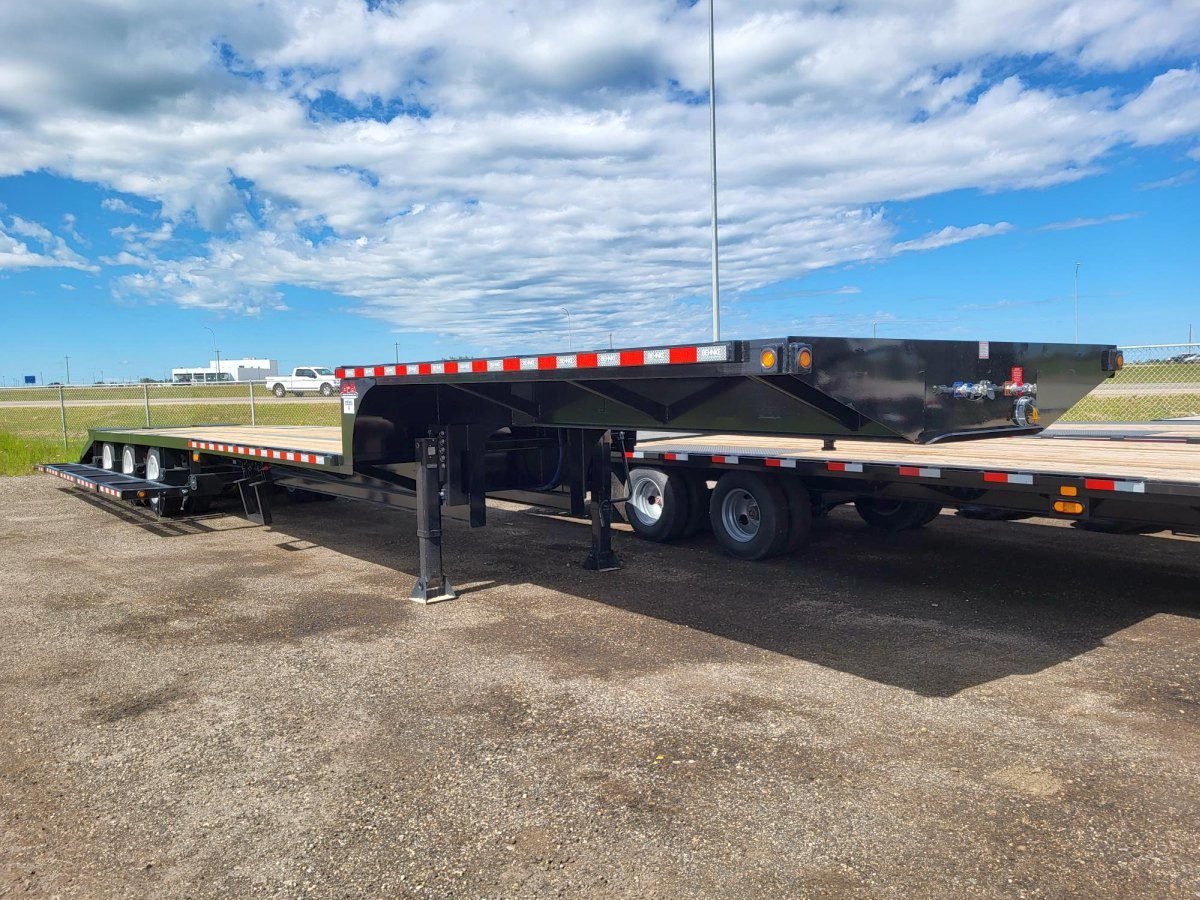

Heavy-Duty Fifth Wheel Configuration
A fifth-wheel hitch connects the trailer to a compatible heavy-duty tow vehicle. The trailer includes a 13-foot deck-over section with approximately 48 inches of clearance and dual-speed Holland landing gear for trailer support when disconnected.
Additional Equipment & Features
- 20″ flip-out outriggers with wheel stops
- Three flip-over deck-leveling ramps
- Beavertail loading configuration
- Winch track
- 1/4″ steel fenders
- DOT-approved sealed rubber-mounted LED lights
- Semi-style electrical plug
- Reflective taping
- Mud flaps
- Dual-speed Holland landing gear
High Clearance Sprayer Trailer Applications
This specialized agricultural trailer may be suitable for transporting compatible:
- High-clearance crop sprayers
- Self-propelled agricultural sprayers
- Large farm machinery
- Agricultural application equipment
- Specialized high-clearance equipment
Equipment dimensions and weight should always be checked against the trailer’s actual ratings and configuration before loading.
Shop Heavy-Duty Agricultural Trailers
Trailer World carries heavy-duty trailers for agricultural, commercial and equipment transportation applications. Browse our trailer inventory to compare available equipment trailers, gooseneck trailers, deckover trailers and specialized hauling solutions.
Pickup & Delivery Options
Contact Trailer World to confirm current availability and transportation options for this 2025 Behnke Fifth Wheel High Clearance Sprayer Trailer. Visit our contact page for purchasing and availability information.
Specifications should be verified against the trailer’s VIN/data plate and manufacturer documentation before purchase, towing or loading. Actual legal load limits may depend on axle ratings, tires, tow vehicle, configuration and applicable federal and state regulations.
Helpful Equipment Trailer Resources
Review equipment-loading, cargo-securement and towing-safety information before transporting machinery or vehicles.
- Federal Motor Carrier Safety Administration – Cargo securement and commercial transportation guidance.
- Occupational Safety and Health Administration – Equipment handling and workplace-safety resources.
- National Highway Traffic Safety Administration – Safe towing and vehicle-operation information.
Always follow the trailer manufacturer’s instructions, tow-vehicle ratings and applicable federal, state and local requirements.
