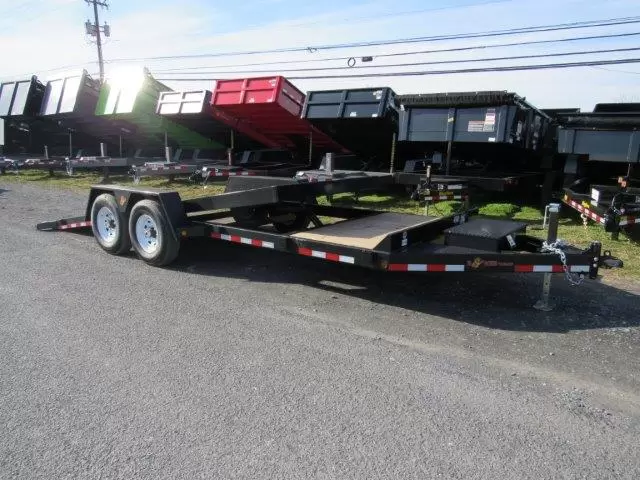

BWise 7×22 Low Profile Split Tilt Equipment Trailer – Gravity Tilt
Original price was: $10,499.00.$9,199.00Current price is: $9,199.00.
BWise 7×22 Low Profile Split Tilt Equipment Trailer featuring a gravity split-tilt deck for convenient equipment loading. Built with tandem 7,000-lb torsion axles, electric brakes on all four wheels, an 82″W x 22’L pressure-treated deck and adjustable 2-5/16″ ball coupler.
- Deck: 82″W x 22’L
- Tilt: Gravity Split-Tilt Deck
- Deck Configuration: 4′ Stationary + 18′ Tilt
- Axles: (2) 7,000-lb Torsion Axles
- Brakes: Electric Brakes on All 4 Wheels
- Tires: 235/80R16
- Jack: 7K Drop-Leg Jack
- Warranty: 5-Year Warranty
BWise 7×22 Low Profile Split Tilt Equipment Trailer
The BWise 7×22 Low Profile Split Tilt Equipment Trailer combines heavy-duty construction with a convenient gravity tilt loading system. Designed for contractors, landscapers, farmers and equipment operators, this trailer provides a practical solution for transporting compatible machinery and equipment.
Its 82-inch-wide by 22-foot-long deck consists of a 4-foot stationary section and an 18-foot gravity tilt section, allowing compatible wheeled equipment to be loaded without traditional loading ramps.
Gravity Split-Tilt Deck
The gravity split-tilt design is one of the standout features of this BWise equipment trailer. The 18-foot tilting section lowers to provide a gradual loading angle, while the 4-foot stationary section remains available for additional cargo or equipment positioning.
This design makes loading and unloading more convenient for compatible skid steers, compact tractors, commercial mowers and other wheeled equipment.
BWise 7×22 Equipment Trailer Specifications
- Manufacturer: BWise
- Trailer Type: Low Profile Equipment Trailer
- Deck Type: Gravity Split-Tilt
- Deck Size: 82″W x 22’L
- Stationary Deck: 4′
- Tilt Deck: 18′
- Axles: (2) 7,000-lb Torsion Axles
- Brakes: Electric Brakes on All Four Wheels
- Tires: 235/80R16
- Coupler: Adjustable 2-5/16″ Ball Coupler
- Jack: 7K Drop-Leg Jack
- Deck Material: Pressure-Treated Wood
- Lighting: LED Lights
- Cargo Securement: Stake Pockets
- Storage: Tool Box
- Warranty: 5-Year Warranty
Tandem 7K Torsion Axles
This BWise tilt equipment trailer is equipped with two 7,000-lb torsion axles. The torsion axle configuration provides independent wheel movement and is designed to deliver dependable performance for demanding equipment-hauling applications.
Electric brakes are installed on all four wheels to provide controlled braking when connected to a properly equipped tow vehicle and brake controller.
82-Inch Wide Equipment Deck
The 82″W x 22’L deck provides substantial loading space while maintaining a low-profile design. Pressure-treated decking provides a durable working surface for regular commercial, agricultural and landscaping use.
Ideal for Equipment Hauling
Depending on equipment dimensions, weight and the trailer’s certified payload capacity, this BWise trailer can accommodate many types of machinery, including:
- Skid steers
- Compact tractors
- Commercial zero-turn mowers
- Landscaping equipment
- Construction machinery
- Small excavators
- Agricultural equipment
- Job-site machinery
Heavy-Duty Equipment Trailer Features
A 7K drop-leg jack provides support when connecting and disconnecting the trailer. The adjustable 2-5/16-inch ball coupler allows proper hitch positioning, while stake pockets provide multiple points for securing compatible loads.
Additional features include LED lighting, a front toolbox and 235/80R16 tires.
BWise 7×22 Tilt Equipment Trailer for Sale
If you’re searching for a BWise 7×22 tilt equipment trailer for sale, this low-profile gravity tilt model offers a useful combination of easy loading, tandem torsion axles, a long 22-foot deck and commercial-grade equipment-hauling features.
Always confirm the trailer’s VIN/data plate for its certified GVWR, payload capacity and other weight ratings before loading or towing.
Shop Equipment Trailers at Trailer World
Browse our selection of tilt trailers, equipment trailers, deckover trailers and other heavy-duty hauling solutions available through Trailer World.
View our trailer inventory or contact Trailer World for current availability and purchasing information.
Helpful Equipment Trailer Resources
Review equipment-loading, cargo-securement and towing-safety information before transporting machinery or vehicles.
- Federal Motor Carrier Safety Administration – Cargo securement and commercial transportation guidance.
- Occupational Safety and Health Administration – Equipment handling and workplace-safety resources.
- National Highway Traffic Safety Administration – Safe towing and vehicle-operation information.
Always follow the trailer manufacturer’s instructions, tow-vehicle ratings and applicable federal, state and local requirements.
