CAM Superline 8×22 Deckover Power Tilt Equipment Trailer – 14K

CAM Superline 8×22 Deckover Power Tilt Equipment Trailer

The CAM Superline 8×22 Deckover Power Tilt Equipment Trailer combines a wide deckover platform, power tilt functionality and tandem heavy-duty axles to create a versatile solution for transporting compatible construction, agricultural and commercial equipment. With a 101-inch-wide by 22-foot-long deck, this trailer provides substantial loading space while eliminating wheel-well obstructions commonly found on conventional equipment trailers.

Its power tilt system is designed to simplify loading and unloading by allowing the deck to tilt instead of requiring conventional removable ramps. Combined with dual hydraulic cushion cylinders, a 12K drop-leg jack, multiple tie-down points and tandem 7,000-lb leaf spring axles, this CAM Superline is well equipped for demanding equipment-hauling applications.

CAM Superline 8×22 Power Tilt Specifications

• Manufacturer: CAM Superline
• Trailer Type: Deckover Power Tilt Equipment Trailer
• Deck Width: 101″
• Deck Length: 22′
• Tilt: 22′ Tilt
• Deck System: Deckover Gravity Split-Tilt Deck / Power Tilt
• Axles: (2) 7,000-lb Leaf Spring Axles
• Brakes: Electric Brakes on All Four Wheels
• Tires: 235/80R16
• Coupler: Adjustable 2-5/16″ Ball Coupler
• Jack: 12K Drop-Leg Jack
• Hydraulics: Adjustable Dual Hydraulic Cushion Cylinders
• Tie Downs: Stake Pockets and D-Rings
• Side Securement: Rub Rail
• Storage: Aluminum Tool Box
• Power: Battery & Battery Charger Included
• Spare: Spare Tire Mount
• Warranty: Two-Year Warranty

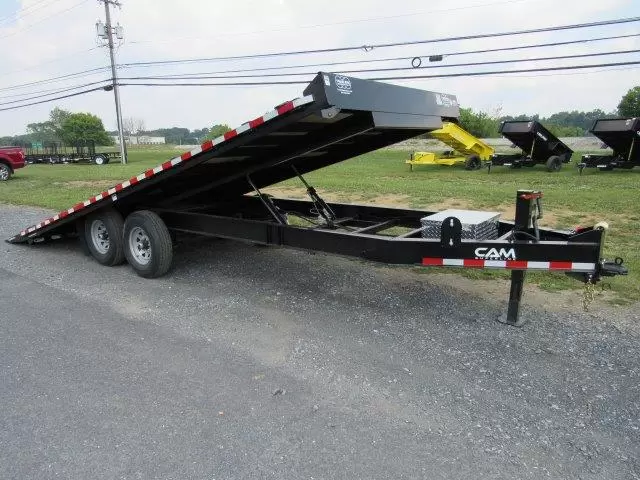

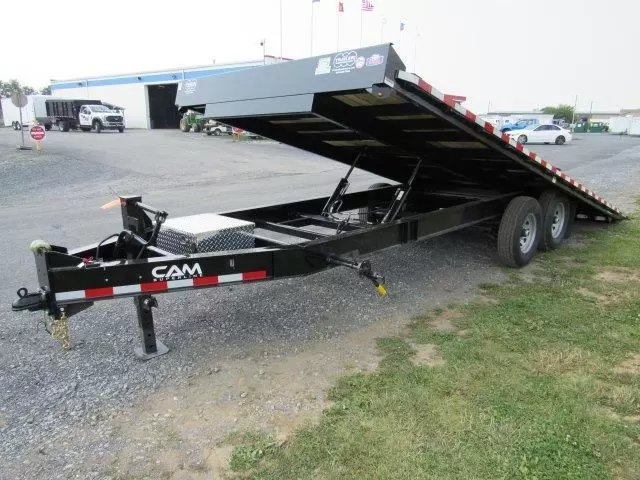

22-Foot Power Tilt Deck

The defining feature of this CAM Superline power tilt equipment trailer is its 22-foot tilting deck. The tilt design creates an approach for loading compatible wheeled or tracked machinery without having to position traditional loading ramps.

The power tilt system is supported by an included battery and battery charger, providing a convenient self-contained setup for operators who frequently load and unload equipment throughout the workday.

101-Inch-Wide Deckover Design

With a 101-inch-wide deck, this CAM Superline deckover trailer provides substantial usable loading width. Because the deck is positioned above the wheels, equipment can utilize the wide platform without conventional fenders occupying deck space.

This configuration can be especially useful when transporting wider machinery and commercial equipment where maximizing available deck width is important.

Tandem 7,000-Lb Leaf Spring Axles

The trailer is equipped with two 7,000-lb leaf spring axles paired with 235/80R16 tires. The tandem-axle configuration provides a strong foundation for demanding equipment-hauling applications.

Electric brakes are fitted on all four wheels to provide additional braking control when connected to a properly equipped tow vehicle and compatible trailer brake controller.

Dual Hydraulic Cushion Cylinders

Adjustable dual hydraulic cushion cylinders support operation of the tilt deck and help provide controlled deck movement during loading and unloading. This makes the trailer especially practical for contractors and operators who routinely move equipment between multiple jobsites.

Heavy-Duty Equipment Securement

The CAM Superline 8×22 includes several integrated cargo-securement features. D-rings, stake pockets and a rub rail provide multiple locations for properly rated chains, straps and binders, allowing operators to select appropriate securement positions for different equipment configurations.

12K Drop-Leg Jack and Adjustable Coupler

A 12K drop-leg jack provides substantial tongue support when the trailer is disconnected from the tow vehicle. The adjustable 2-5/16-inch ball coupler allows the coupler height to be configured for compatible towing setups.

Aluminum Tool Box and Battery System

An integrated aluminum tool box provides convenient storage for trailer accessories, chains, straps, binders and other equipment. The included battery and battery charger support the trailer’s powered tilt functionality.

Ideal Equipment-Hauling Applications

Subject to the trailer’s certified payload capacity, equipment dimensions and proper weight distribution, this CAM Superline 8×22 equipment trailer may be suitable for transporting:

• Skid steers
• Mini excavators
• Compact tractors
• Compact loaders
• Construction machinery
• Landscaping equipment
• Farm and agricultural equipment
• Utility machines
• Other compatible wheeled or tracked equipment

CAM Superline 8×22 Deckover Power Tilt Trailer for Sale

If you’re looking for a CAM Superline 8×22 deckover power tilt equipment trailer for sale, this model delivers a wide 101-inch deck, 22 feet of loading space, power tilt operation, tandem 7K axles and multiple integrated equipment-securement points.

Always confirm the trailer’s exact GVWR, curb weight and available payload from its VIN/data plate before loading equipment.
