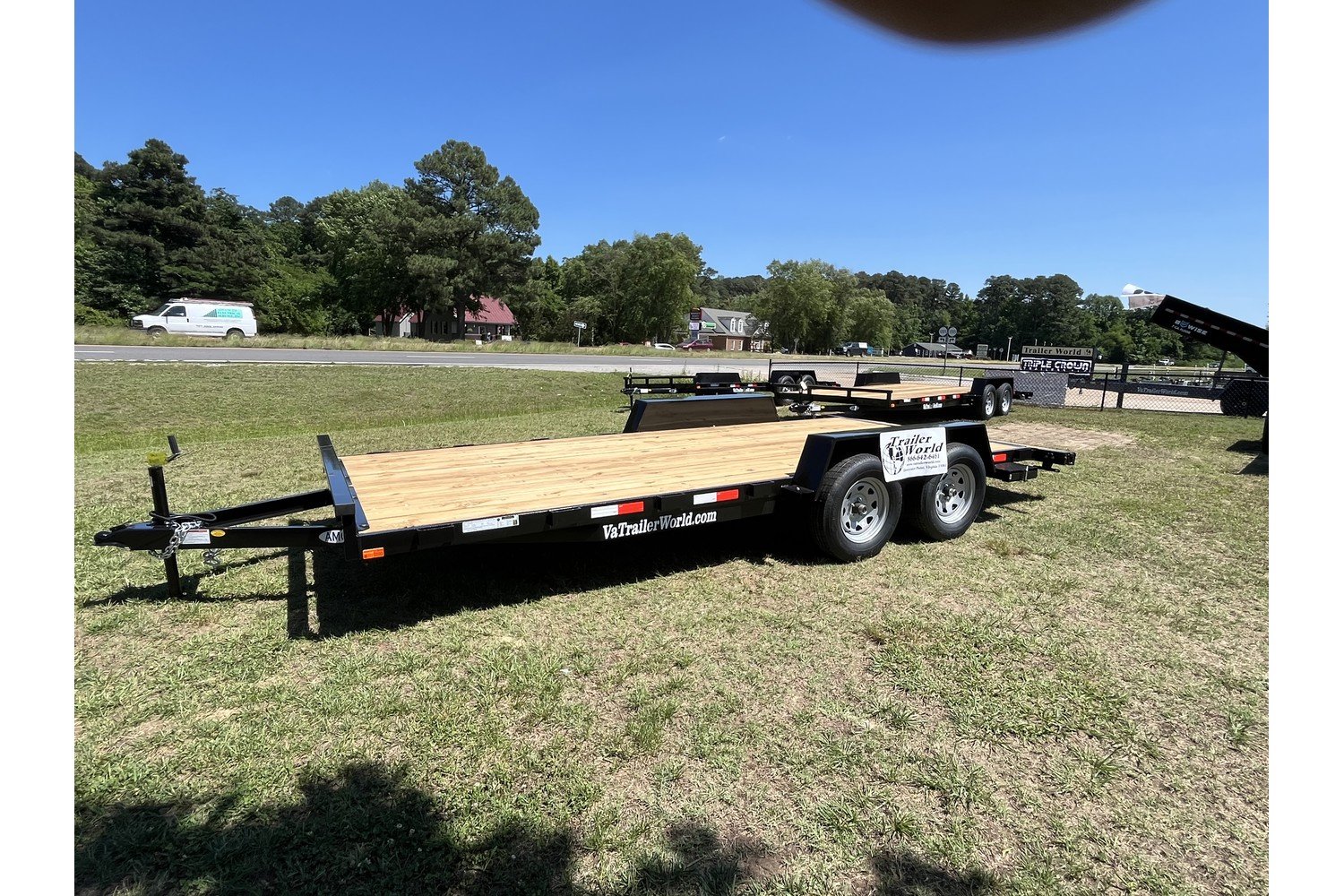

2026 American CH20W 6’10” x 20′ Wood Deck Equipment Trailer with Removable Fenders

2026 American CH20W 20′ Wood Deck Equipment Trailer for Sale

The 2026 American CH20W 6’10” x 20′ Wood Deck Equipment Trailer provides the deck space, loading flexibility and towing stability needed for demanding equipment and vehicle transport. Built for contractors, landscapers, farmers, equipment owners and recreational users, this tandem-axle trailer combines a reinforced steel frame with a durable pressure-treated wood deck.

Its 20-foot loading surface includes a 16-foot flat deck and a 4-foot beavertail. This extended transition helps reduce the loading angle for cars, mowers, compact tractors, ATVs, UTVs and other equipment with limited ground clearance.

American CH20W Specifications

• Model year: 2026
• Manufacturer: American
• Model: CH20W
• Trailer type: Equipment trailer and open car hauler
• Overall deck length: 20 feet
• Flat deck length: 16 feet
• Beavertail length: 4 feet
• Width between fenders: 6 feet 10 inches
• Gross Vehicle Weight Rating: 7,000 lbs
• Approximate stated load capacity: 5,500 lbs
• Axles: Tandem axle configuration
• Brakes: Electric brakes on both axles
• Deck material: Pressure-treated wood
• Fenders: Removable steel fenders
• Ramps: Slide-in loading ramps
• Jack: 2,000 lb tongue jack
• Tongue: Channel-wrapped construction
• Tie-down features: Stake pockets

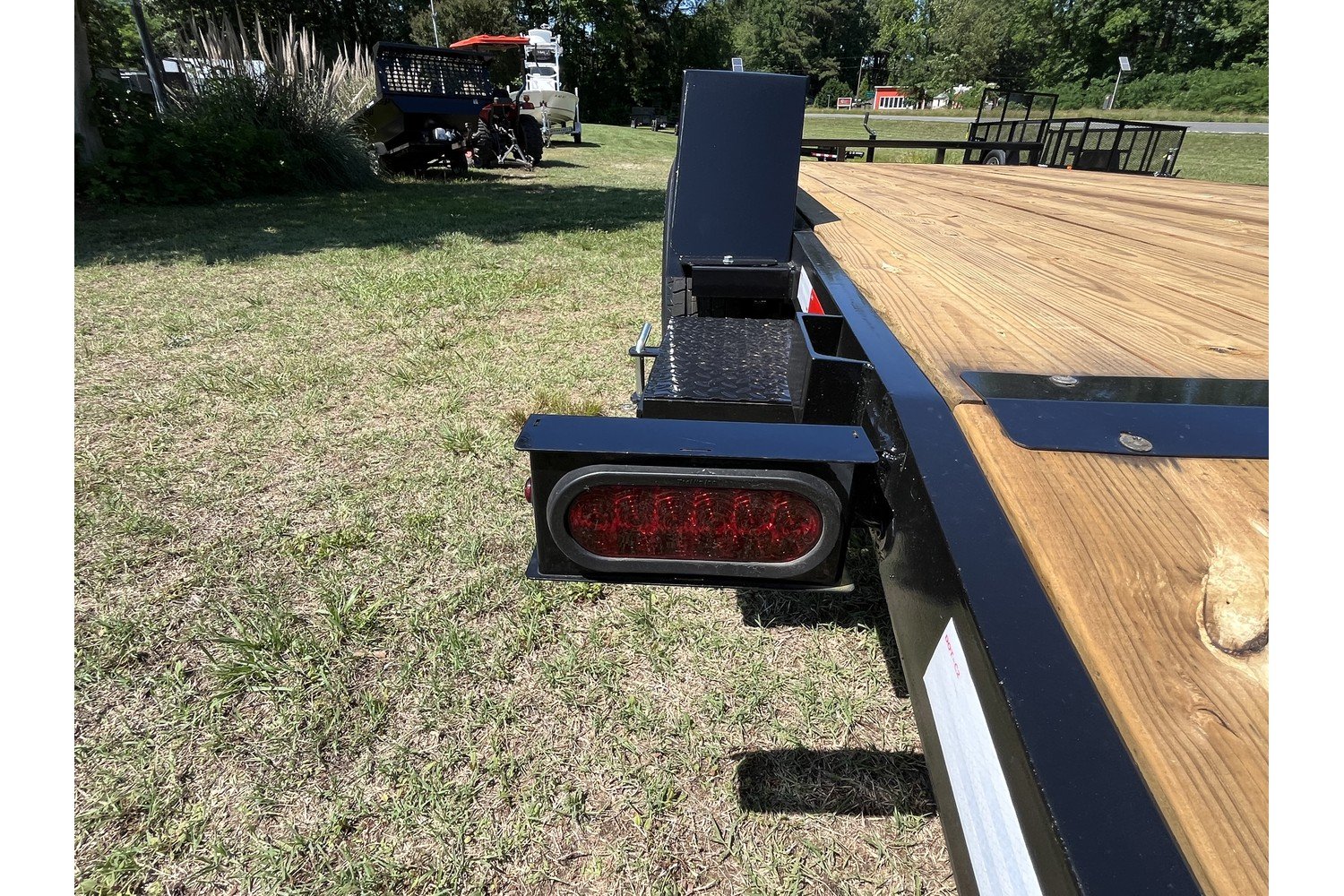

• Rear feature: Stop bar

What Can the CH20W Haul?

The American CH20W is suitable for many commercial, agricultural and recreational applications when the cargo fits within the trailer dimensions and allowable payload.

• Cars and compact vehicles
• Zero-turn lawn mowers
• Compact tractors
• Skid steers within the rated capacity
• ATVs and UTVs
• Side-by-side vehicles
• Landscaping equipment
• Construction tools and machinery
• Farm equipment
• Generators and compressors
• Building materials
• Commercial equipment

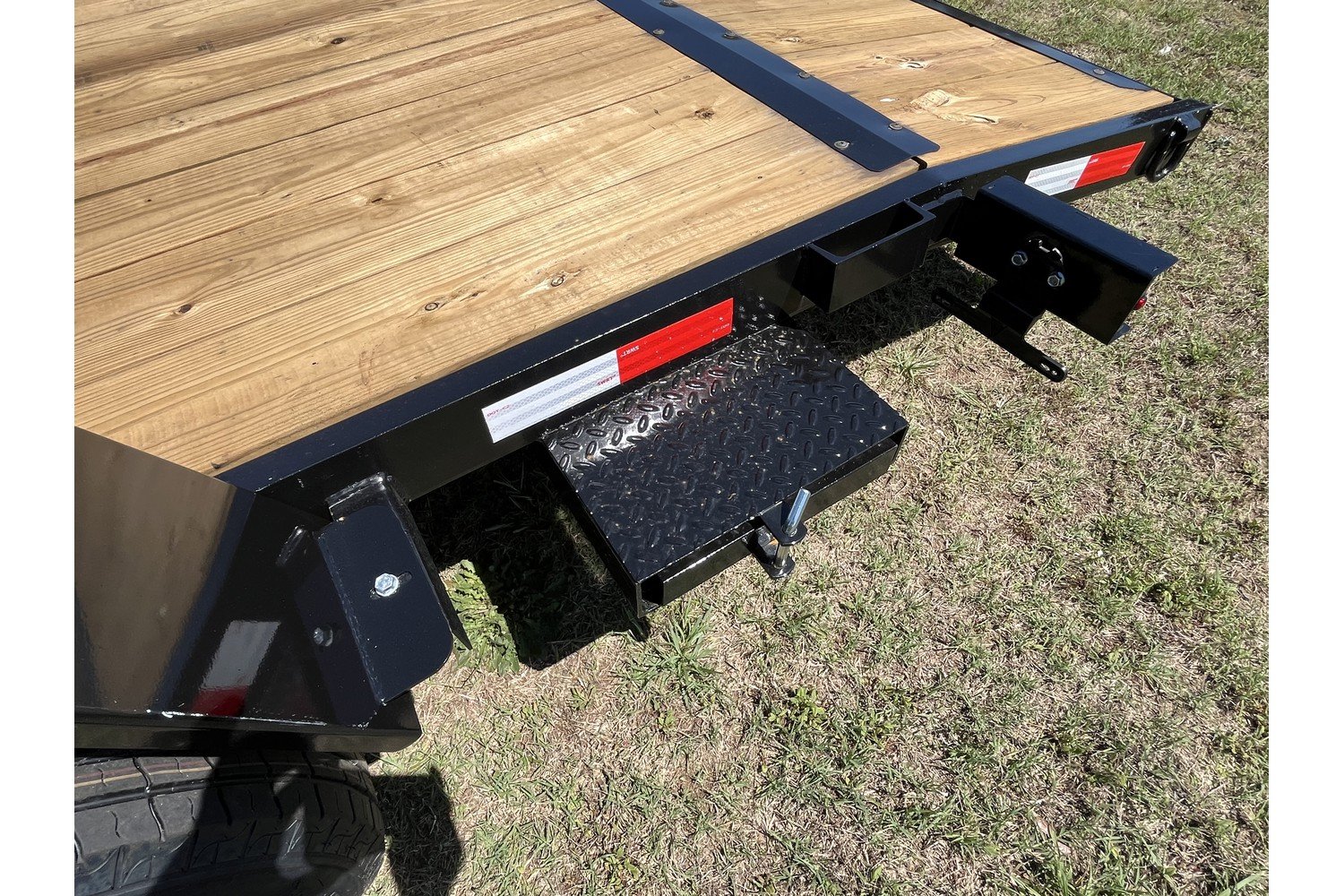

20-Foot Wood Deck with a 4-Foot Beavertail

The 16-foot flat deck provides a stable surface for securing vehicles and machinery, while the 4-foot beavertail creates a more gradual transition from the ramps to the main deck. This can make loading lower-clearance vehicles and wheeled equipment easier than on trailers with a shorter transition.

Pressure-Treated Wood Flooring

The pressure-treated wood deck offers useful tire traction and helps absorb impacts during equipment loading. Individual boards may also be easier to repair or replace than a one-piece steel deck after years of demanding use.

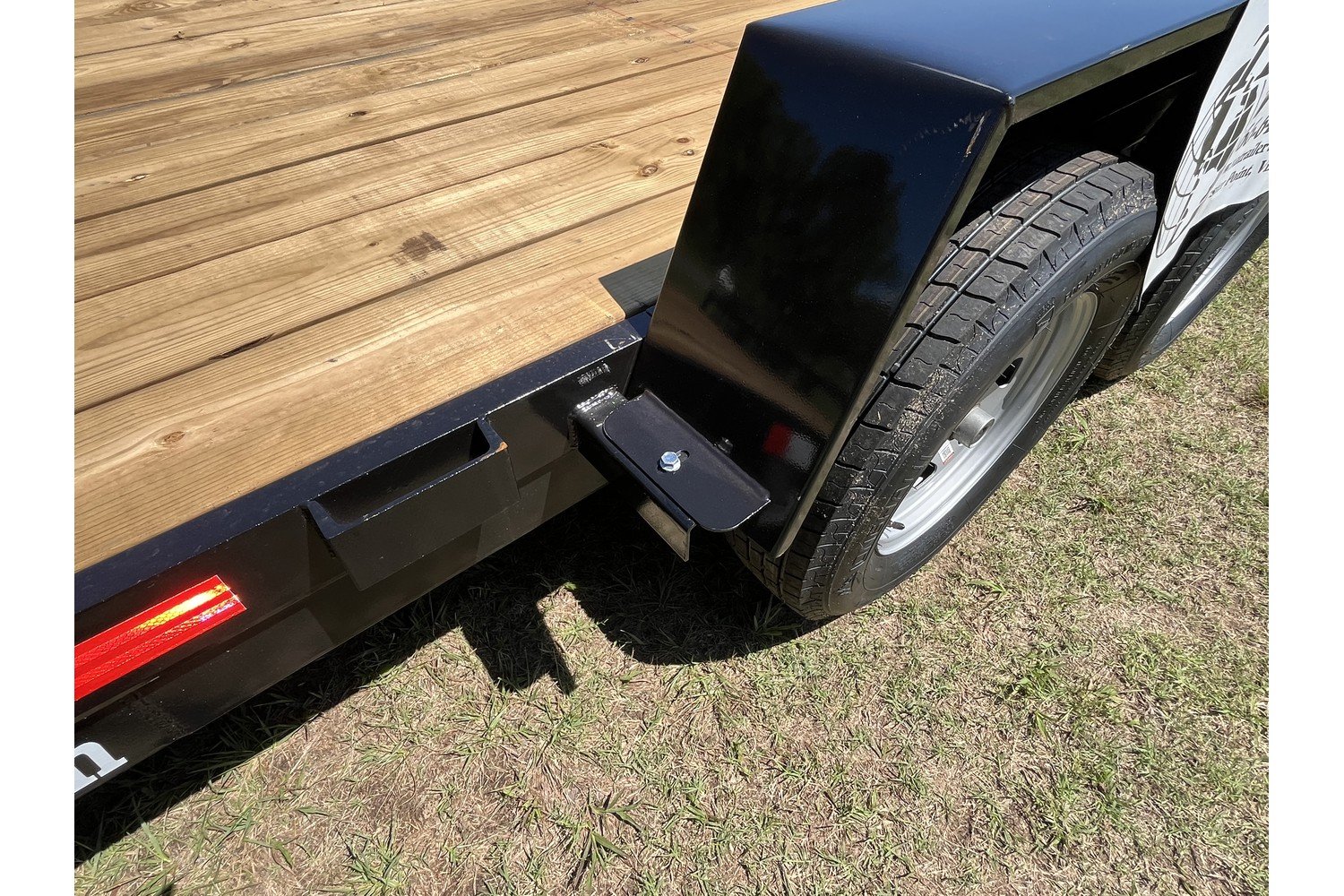

Removable Fenders

The removable steel fenders improve flexibility when loading wide equipment or vehicles. Removing a fender may provide additional door clearance after a vehicle has been positioned on the trailer.

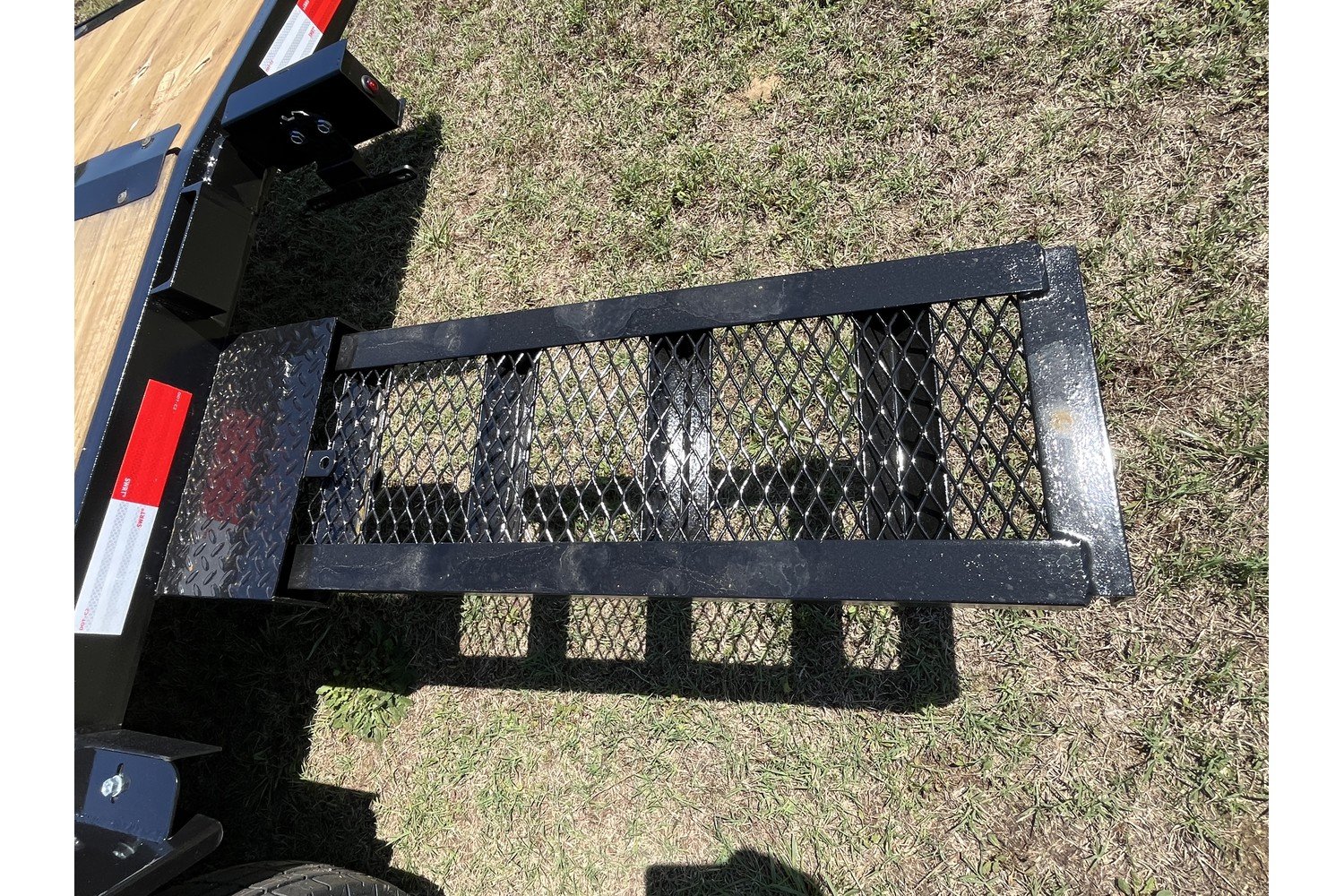

Slide-In Ramps for Convenient Loading

Heavy-duty slide-in ramps provide a practical loading solution and can be stored securely when not in use. Always position both ramps correctly and confirm that the ramps, trailer and tow vehicle are rated for the intended load.

7,000 lb GVWR and 5,500 lb Load Capacity

The dealer information lists a 7,000 lb GVWR and approximately 5,500 lbs of load capacity. Exact allowable cargo weight depends on the certified empty weight shown on the trailer identification label. Buyers should verify the final GVWR, payload and axle ratings before loading.

Electric Brakes on Both Axles

Electric brakes on both axles can provide improved stopping assistance and more balanced braking when connected to a compatible tow vehicle and properly configured brake controller. All braking components should be inspected and adjusted according to the manufacturer’s recommendations.

Channel-Wrapped Tongue and Stake Pockets

The channel-wrapped tongue strengthens the front structure of the trailer, while stake pockets provide multiple locations for suitable tie-down equipment. Cargo must always be secured using appropriately rated straps, chains, binders or other approved securement devices.

Why Buy From TrailerWorld?

• Detailed trailer specifications
• Competitive inventory pricing
• Financing information for qualifying buyers
• Trailer delivery options
• Multiple equipment and utility trailer categories
• Customer support during the buying process

Equipment Trailer Financing

Qualified buyers can review available payment options on our
Trailer Financing page.
Approval, rates, terms and required documentation are determined by the applicable financing provider.

Trailer Delivery Options

Delivery may be available depending on the destination, trailer and transport requirements. Visit our
Trailer Delivery page
to review the process and request a delivery estimate.

Browse Related Trailer Categories

Continue shopping our
Equipment Trailers,
Utility Trailers,
Gooseneck Trailers,
Dump Trailers,
Enclosed Car Haulers
and
complete trailer inventory.

Frequently Asked Questions

What is the deck layout of the American CH20W?

The trailer has a 16-foot flat deck and a 4-foot beavertail, providing a 20-foot overall loading surface.

How wide is the trailer between the fenders?

The listed width between the fenders is 6 feet 10 inches. Measure the widest part of your vehicle or equipment before purchasing.

What is the CH20W’s GVWR?

The listed GVWR is 7,000 lbs, with an approximate stated load capacity of 5,500 lbs. Confirm exact ratings on the trailer’s certification label.

Does this trailer have brakes on both axles?

Yes. The dealer specifications state that electric brakes are installed on both axles.

Are the fenders removable?

Yes. The removable fenders can provide additional loading and vehicle-door clearance.

Does the American CH20W include ramps?

Yes. The listed equipment includes heavy-duty slide-in ramps.

What can this 20-foot equipment trailer haul?

It may be suitable for cars, tractors, mowers, ATVs, UTVs, construction equipment and other machinery that fits within its dimensions and rated payload.

Is financing available?

Financing options may be available to qualified buyers. Visit the
Financing page
for current information.

Can TrailerWorld deliver this trailer?

Delivery may be available based on the destination and transportation requirements. Request information through the
Trailer Delivery page.
