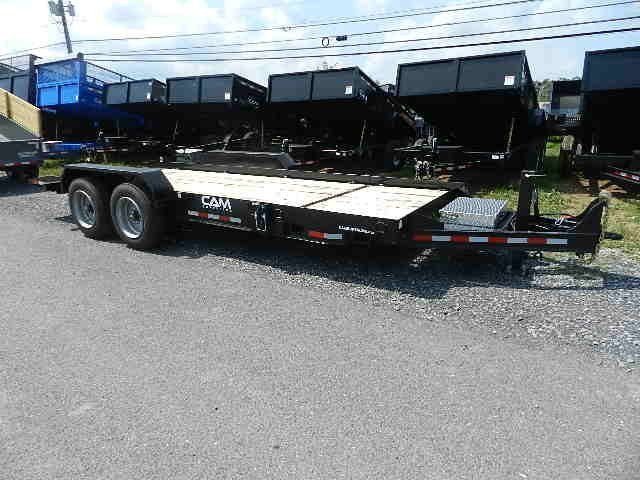

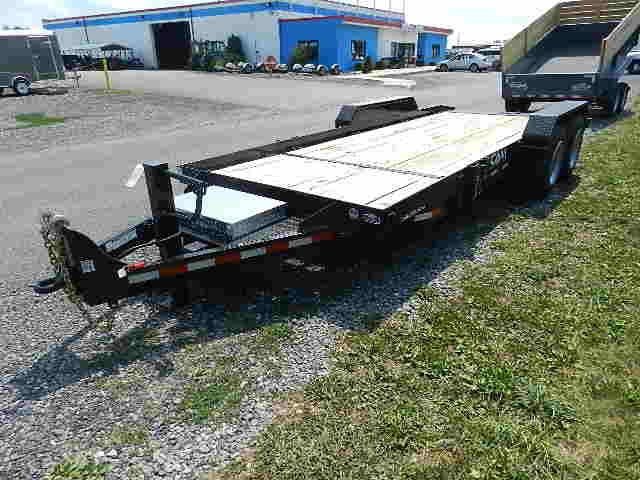

CAM Superline 7×19 Split Tilt Equipment Trailer – 16K Dexter Axles
Original price was: $9,499.00.$8,700.00Current price is: $8,700.00.
CAM Superline 7×19 Split Tilt Equipment Trailer designed for easy loading and heavy-duty equipment hauling. Features a 79″ wide deck with 4′ stationary section plus 15′ hydraulic tilt deck, tandem 8K Dexter axles, oil-bath hubs and electric brakes on all four wheels.
- Deck: 79″W x 19’L
- Configuration: 4′ Stationary + 15′ Tilt Deck
- Axles: (2) 8,000-lb Dexter Leaf Spring Axles
- Hubs: Oil Bath
- Brakes: Electric Brakes on All 4 Wheels
- Tires: 215/75R17.5
- Coupler: Adjustable 2-5/16″ Ball Coupler
- Jack: 7K Drop-Leg Jack
CAM Superline 7×19 Split Tilt Equipment Trailer
The CAM Superline 7×19 Split Tilt Equipment Trailer combines a heavy-duty equipment hauling platform with a convenient split-tilt deck designed to simplify loading and unloading. With a 79-inch-wide deck, 4-foot stationary section and 15-foot tilt section, this trailer provides a practical solution for transporting compatible construction equipment, tractors, skid steers, landscaping machinery and other equipment.

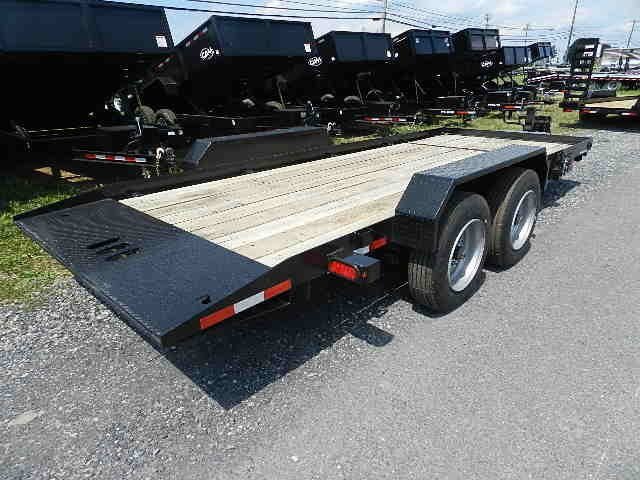

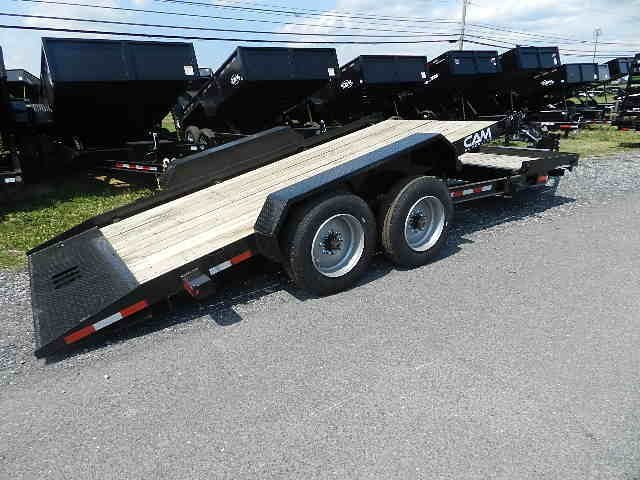

Instead of relying on conventional loading ramps, the tilt-deck configuration allows the rear portion of the trailer to lower toward the ground. An adjustable hydraulic cushion cylinder helps control deck movement during the loading and unloading process.
CAM Superline 7×19 Trailer Specifications
- Manufacturer: CAM Superline
- Trailer Type: Split Tilt Equipment Trailer
- Deck Width: 79″
- Total Deck Length: 19′
- Stationary Deck: 4′
- Tilt Deck: 15′
- Axles: (2) 8,000-lb Dexter Leaf Spring Axles
- Hub Type: Oil Bath Hubs
- Brakes: Electric Brakes on All Four Wheels
- Tires: 215/75R17.5
- Coupler: Adjustable 2-5/16″ Ball Coupler
- Jack: 7K Drop-Leg Jack
- Tilt System: Adjustable Hydraulic Cushion Cylinder
- Tie-Down Features: Stake Pockets and D-Rings
- Storage: Aluminum Toolbox
- Loading Feature: Approach Plate
4-Foot Stationary Deck and 15-Foot Tilt Deck
The 19-foot split tilt deck consists of a 4-foot stationary front section and a 15-foot tilting rear section. This configuration provides a versatile loading platform while allowing equipment to be loaded without handling separate conventional ramps.
The 79-inch deck width provides room for many types of compact construction, agricultural and landscaping equipment while maintaining a manageable overall trailer configuration.

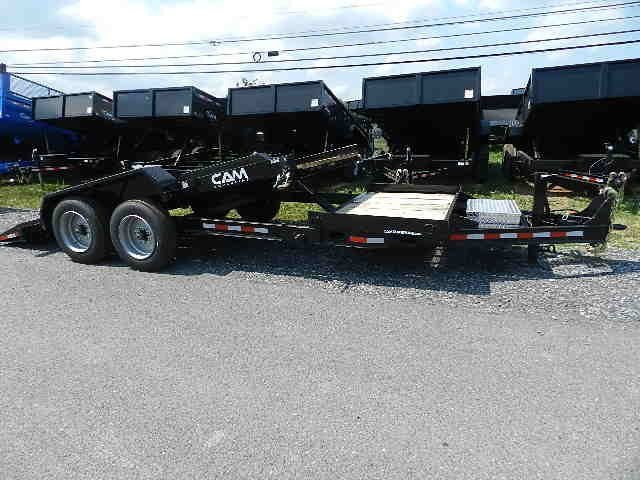

Hydraulic Cushion Tilt System
An adjustable hydraulic cushion cylinder controls the movement of the tilt deck. This provides a smoother loading and unloading process when compared with an uncontrolled gravity-only tilt system.

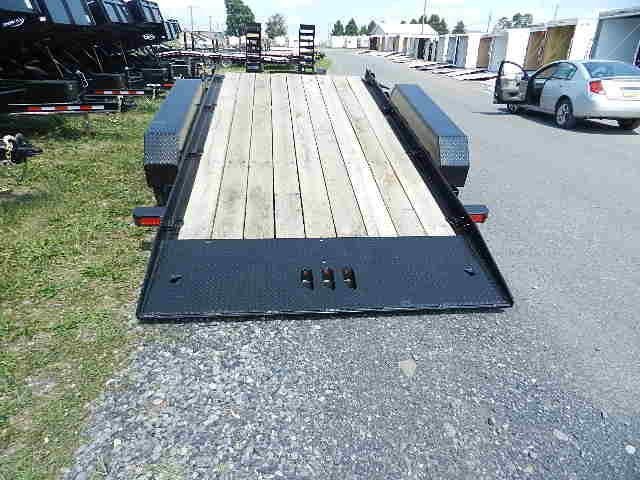

The approach plate further assists the transition between the ground and the tilting deck, making the trailer particularly useful for equipment with lower ground clearance.

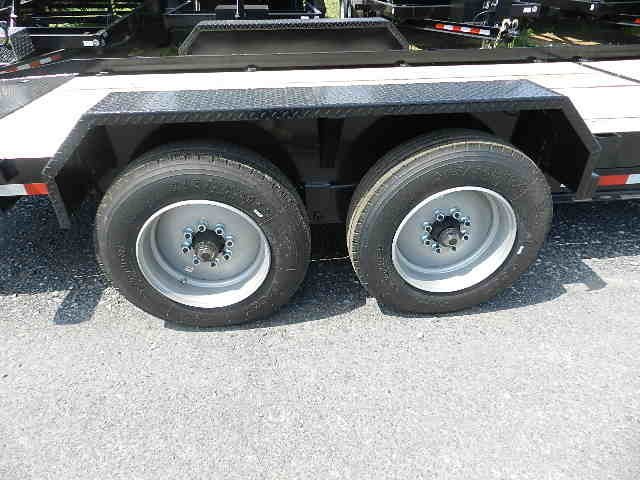

Tandem 8K Dexter Axles
This CAM Superline equipment trailer is equipped with two 8,000-lb Dexter leaf spring axles. Oil-bath hubs provide a heavy-duty hub configuration designed for demanding trailer applications.
Electric brakes are installed on all four wheels to provide additional braking control when connected to a properly equipped tow vehicle and compatible brake controller.
Heavy-Duty 17.5-Inch Tires
The trailer rides on 215/75R17.5 tires, complementing its heavy-duty axle configuration. Always verify tire pressure, tire load ratings and condition before transporting equipment.
Adjustable Coupler and Drop-Leg Jack
An adjustable 2-5/16-inch ball coupler allows the trailer connection height to be matched appropriately with a compatible tow vehicle. A 7K drop-leg jack provides support while the trailer is parked or being connected and disconnected.
Equipment Hauling Applications
Depending on the trailer’s certified GVWR, payload capacity, equipment dimensions and weight distribution, the CAM Superline 7×19 tilt trailer may be suitable for transporting:
- Skid steers
- Mini excavators
- Compact tractors
- Landscaping machinery
- Construction equipment
- Commercial mowers
- Utility equipment
- Other compatible machinery
Integrated Tie-Down and Storage Features

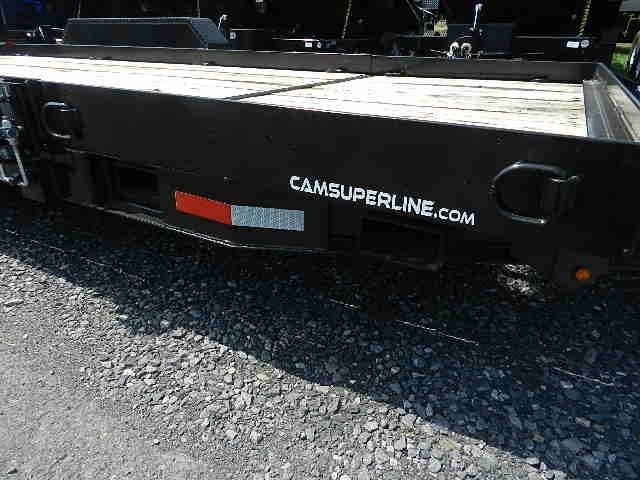

Stake pockets and D-rings provide multiple locations for securing compatible loads using appropriately rated tie-down equipment. An aluminum toolbox provides convenient storage space for straps, chains and other trailer accessories.
CAM Superline 7×19 Split Tilt Trailer for Sale
If you’re looking for a CAM Superline 7×19 split tilt equipment trailer for sale, this model offers a combination of heavy-duty Dexter axles, hydraulic-assisted tilt loading and a versatile 19-foot deck for equipment transportation.
Always check the trailer’s VIN/data plate for its exact GVWR, payload capacity and manufacturer ratings before loading.
Shop Equipment Trailers at Trailer World
Browse our complete trailer inventory to compare equipment trailers, tilt trailers, deckover trailers and gooseneck models, or contact Trailer World for current availability and purchasing information.
Helpful Equipment Trailer Resources
Review equipment-loading, cargo-securement and towing-safety information before transporting machinery or vehicles.
- Federal Motor Carrier Safety Administration – Cargo securement and commercial transportation guidance.
- Occupational Safety and Health Administration – Equipment handling and workplace-safety resources.
- National Highway Traffic Safety Administration – Safe towing and vehicle-operation information.
Always follow the trailer manufacturer’s instructions, tow-vehicle ratings and applicable federal, state and local requirements.
