Big Tex 8.5×30 Gooseneck Deckover Equipment Trailer – Mega Ramps
Original price was: $12,499.00.$10,099.00Current price is: $10,099.00.
Big Tex 8.5×30 Gooseneck Deckover Equipment Trailer built for heavy-duty equipment and machinery hauling. Features a 102″ wide deck, 25′ main deck plus 5′ beavertail, spring-assist mega ramps, 10,000-lb axles, oil-bath hubs and heavy-duty slipper spring suspension.
- Overall Deck: 30′
- Deck: 102″W x 25′ plus 5′ Beavertail
- Ramps: 5′ Spring-Assist Mega Ramps
- Axles: 10,000-lb Dexter Oil Bath
- Coupler: Adjustable 2-5/16″ Gooseneck
- Jacks: 12K Drop-Leg Jacks
- Lighting: LED + Integrated Work Lights
Big Tex 8.5×30 Gooseneck Deckover Equipment Trailer
The Big Tex 8.5×30 Gooseneck Deckover Equipment Trailer is a heavy-duty hauling solution designed for transporting compatible construction machinery, farm equipment, commercial vehicles and other large loads. Its 102-inch-wide deckover design provides substantial usable deck space, while the 30-foot configuration combines a 25-foot main deck with a 5-foot beavertail for easier equipment loading.
Built with heavy-duty running gear, spring-assist mega ramps and a gooseneck connection, this trailer is well suited for contractors, equipment operators, farmers, landscapers and other commercial users requiring additional deck space and hauling capability.
Big Tex 8.5×30 Trailer Specifications
- Manufacturer: Big Tex
- Trailer Type: Gooseneck Deckover Equipment Trailer
- Overall Deck Length: 30′
- Main Deck: 102″W x 25′
- Beavertail: 5′
- Ramps: 5′ Rear Spring-Assist Mega Ramps
- Brakes: Electric Brakes
- Axles: 10,000-lb Dexter Oil Bath Axles
- Axle Spread: 48″
- Tires: ST235/80R16
- Coupler: 2-5/16″ Adjustable Gooseneck Coupler
- Jacks: 12K Drop-Leg Jacks
- Suspension: Heavy-Duty Slipper Spring Suspension
- Lighting: LED Lights and Integrated Work Lights
- Wiring: 7-Way RV Style
- Storage: Front Toolbox
- Tie-Down: Full-Length Rub Rail

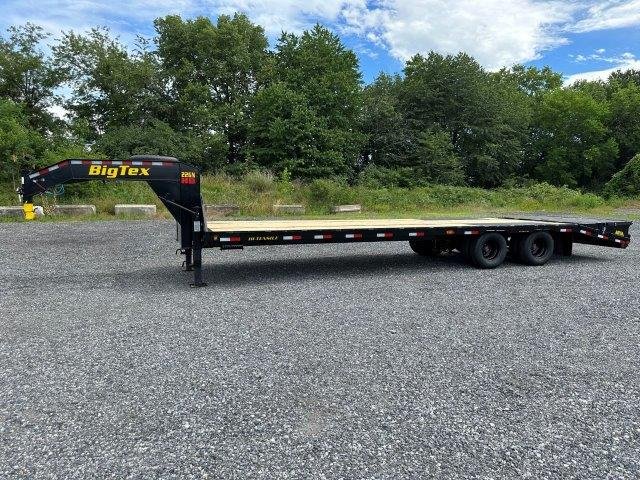

30-Foot Deckover Equipment Hauling Platform
The Big Tex 30ft gooseneck equipment trailer provides a large loading platform with a 102-inch-wide deck. Because the deck sits above the wheels, operators gain additional usable width without wheel wells interrupting the loading surface.
The 25-foot main deck is complemented by a 5-foot beavertail, providing a total 30-foot loading platform for compatible machinery and equipment.

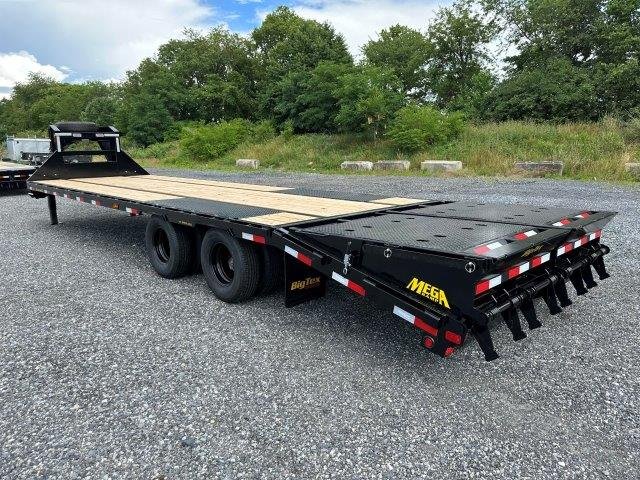

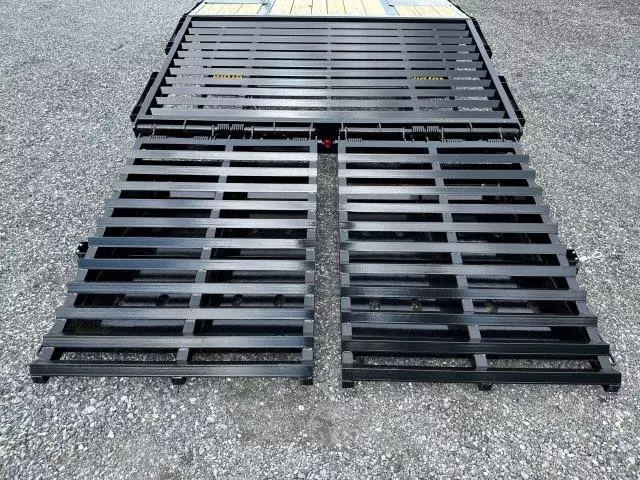

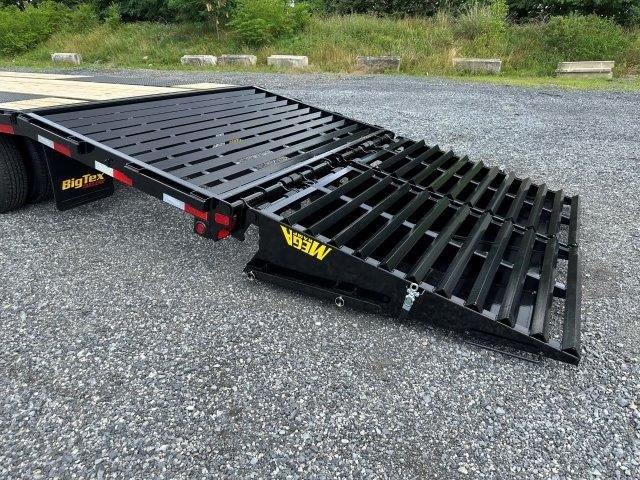

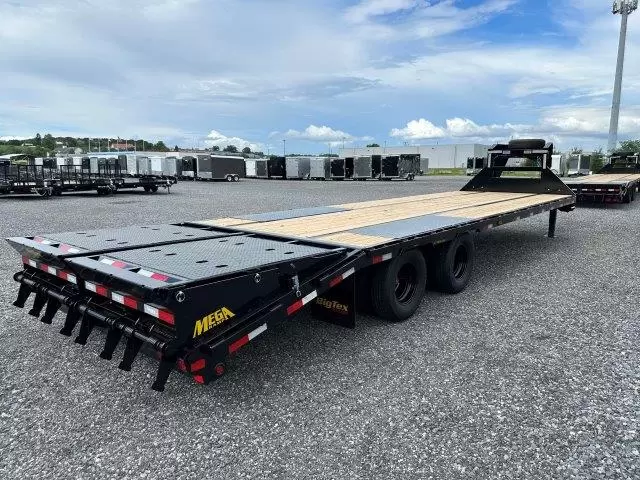

Spring-Assist Mega Ramps
Rear spring-assist mega ramps provide a wide loading area for equipment. The spring-assist design helps make raising and lowering the ramps more manageable, while the 5-foot ramp length works together with the beavertail to create a practical loading approach.
Heavy-Duty Dexter Axles
This gooseneck equipment trailer features 10,000-lb Dexter axles with oil-bath hubs and a 48-inch axle spread. Heavy-duty slipper spring suspension supports the trailer’s commercial hauling configuration.
Electric brakes provide additional stopping control when connected to a properly equipped tow vehicle and compatible brake controller.

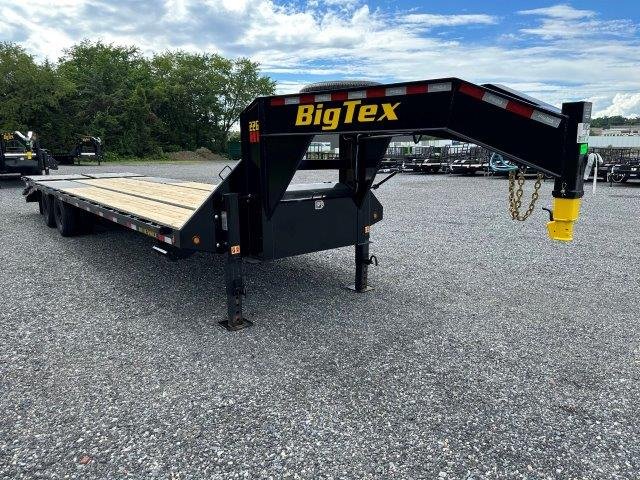

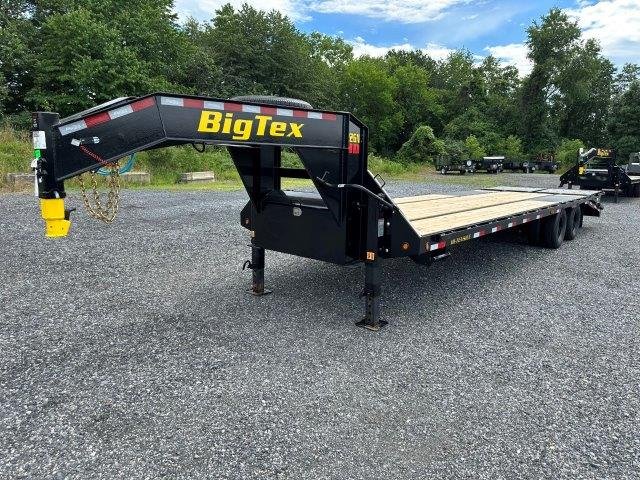

Adjustable Gooseneck Connection
The 2-5/16-inch adjustable gooseneck coupler provides a secure connection to a compatible tow vehicle. The easy-adjust design allows the coupler height to be configured appropriately for the towing setup.
Dual 12K drop-leg jacks provide substantial support when connecting, disconnecting or parking the trailer.
Designed for Equipment and Machinery
Depending on equipment dimensions, weight distribution and the trailer’s certified payload rating, this Big Tex deckover equipment trailer may be suitable for hauling:
- Skid steers
- Mini excavators
- Compact and agricultural tractors
- Construction equipment
- Commercial landscaping equipment
- Farm machinery
- Job-site equipment
- Compatible vehicles and machinery
Commercial Hauling Features
A full-length rub rail provides convenient locations for properly securing compatible cargo. The trailer also includes safety chains, LED lighting, integrated work lights, under-deck steps with grab handles and a front toolbox for storing commonly used towing and tie-down equipment.
Big Tex 8.5×30 Gooseneck Equipment Trailer for Sale
If you’re searching for a Big Tex 8.5×30 gooseneck equipment trailer for sale, this deckover model combines a spacious 30-foot loading platform, heavy-duty axles, mega ramps and commercial hauling features in one versatile package.
Before loading, always verify the trailer’s VIN/data plate for its certified GVWR, payload capacity and other manufacturer ratings.
Shop Equipment Trailers at Trailer World
Trailer World offers equipment trailers, gooseneck trailers, deckover trailers and other hauling solutions for commercial, agricultural and personal applications.
Browse our trailer inventory or contact Trailer World for current availability, purchasing and delivery information.
Helpful Equipment Trailer Resources
Review equipment-loading, cargo-securement and towing-safety information before transporting machinery or vehicles.
- Federal Motor Carrier Safety Administration – Cargo securement and commercial transportation guidance.
- Occupational Safety and Health Administration – Equipment handling and workplace-safety resources.
- National Highway Traffic Safety Administration – Safe towing and vehicle-operation information.
Always follow the trailer manufacturer’s instructions, tow-vehicle ratings and applicable federal, state and local requirements.
